Wire-Mesh Mounting System for Gates
This system uses our specially designed Boomerang Brackets and Wire Mesh Clips (with standard products available from third parties).
Steel Board Gate using our Boomerang Brackets for the lower mesh extension and Wire Mesh Clips to secure the vinyl-mesh to gate.

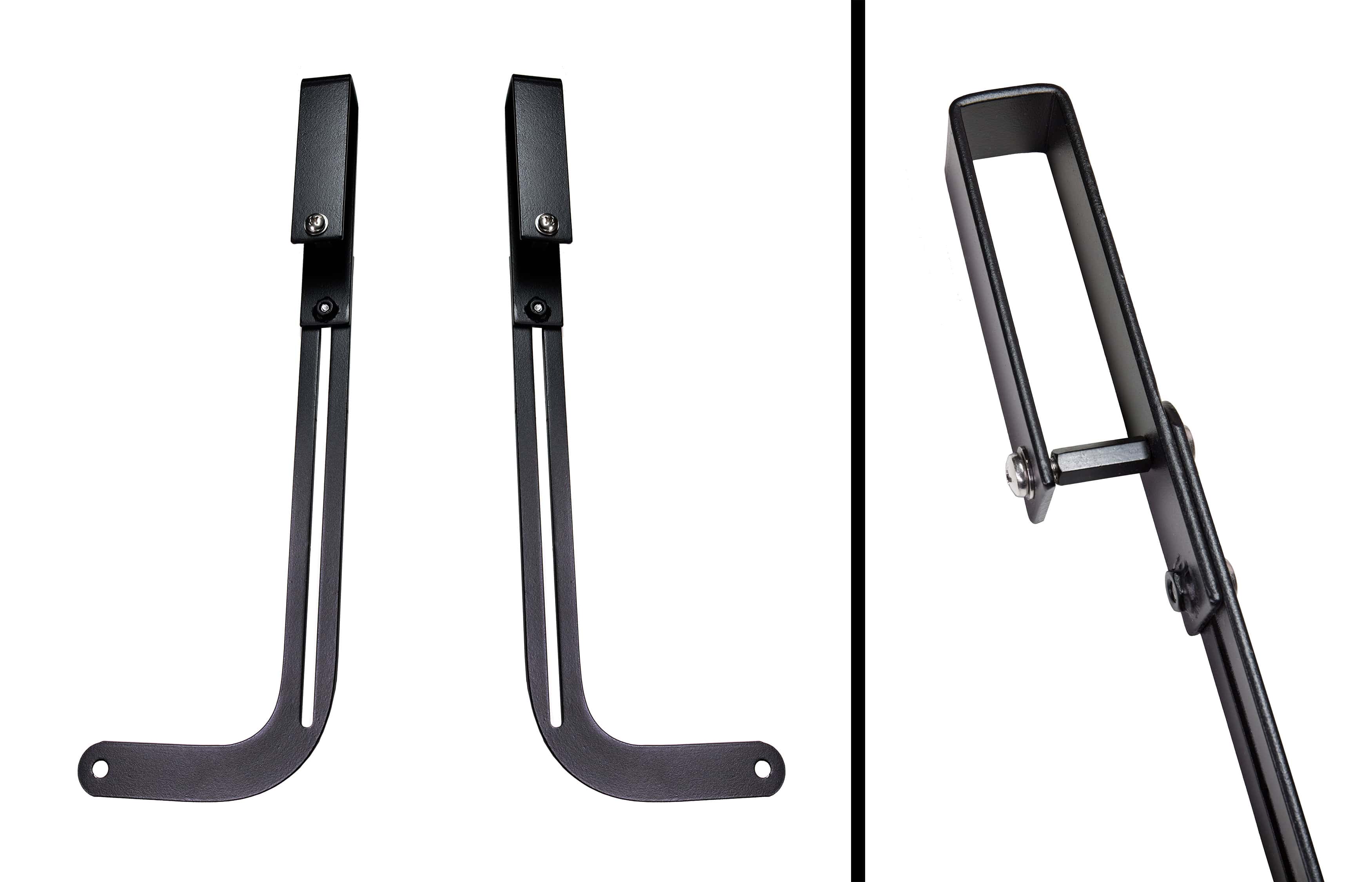

Boomerang Brackets
Boomerang Brackets are unique to our rail size and mount directly on our gates, allowing us to mount the mesh and frame. Boomerang Brackets are galvanized and powder-coated to perfectly match our fences and gates.
Mounting System before wire-mesh is installed.

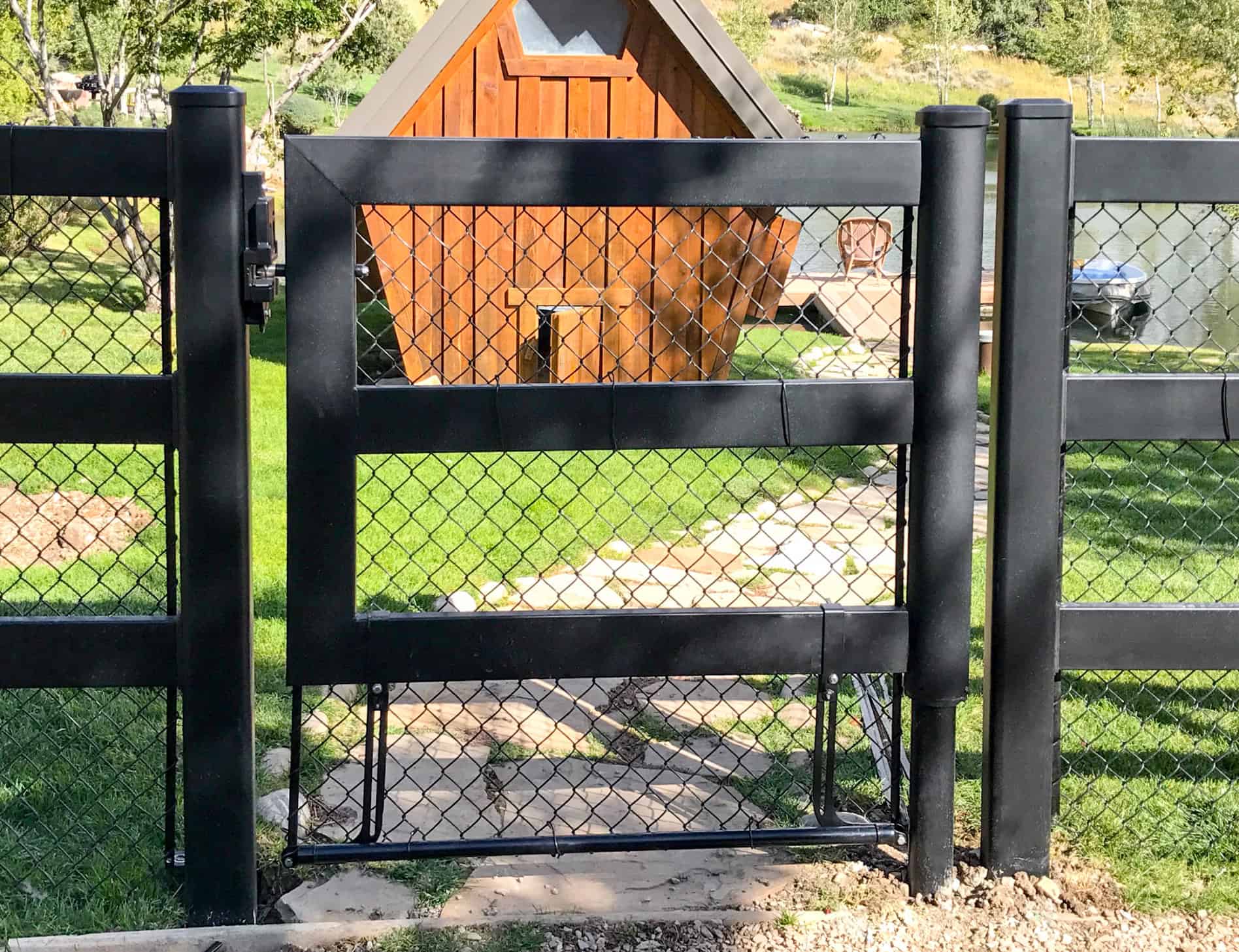

Wire-mesh installed on gate.
Standard 3rd party-proucts used (not supplied by Buckley Fence):
- Vertical tension bar for chain link in black. Steel or fiberglass.
- 1 3/8 inch galvanized steel tubing for chain link with black vinyl coating. Cut to length. Can be purchased in 21-feet lengths.
- Black coated 1 3/8 inch rail-ends for chain link with screw hole. Also, use 5/16 inch x 2 inch fully threaded screw with 3-nuts to mount to Boomerang Bracket and for spacing to the round bar (item 2).
