Elegant

AND STRONG

Our Steel Board Fence is the only post and rail board fence made of steel. It has the aesthetic appeal of traditional wood fencing but is much stronger and more durable.

The steel is two-sided zinc galvanized and powder coated with architectural grade powder coating in combination with a zinc phosphate conversion coating for superior paint adhesion and rust protection.

CALCULATE ESTIMATE
Long

LASTING

The lifetime expectancy of the Steel Board Fence is decades and the lifetime maintenance costs are virtually zero. The protective powder coating will not chip, peel or crack and has superior long-term resistance to rusting, fading, or chalking—making this the most durable horse fencing.

Each piece of horse fencing is thermally independent with allowance for the slight thermal expansion and contraction that occurs in metal. The steel fence rails remain straight and the posts perfectly aligned no matter what the temperature. Unlike wood or vinyl, the horse rail fences will not warp or sag over time. Nor will they be destroyed from cribbing.

4-Rail White Fence
Cleverly

DESIGNED

We pride ourselves on easy installation. The Steel Board fence posts are rectangular in shape with rounded corners that are pre-punched with rail openings fitted with unique rubber grommets. The rubber grommets protect the horse fence board’s surface and allow them to be articulated within each post to easily fit any layout or terrain.

During installation, a lock spacer is dropped inside each post to engage the rails and eliminate the need for nails or screws. Each rail is simply inserted in the post and locked in place for easy installation.

LEARN MORE ABOUT INSTALL
Designed for

HORSE SAFETY

The Steel Board Horse Fence is highly visible with rounded smooth edges and no nails, screws or fasteners. The length of the rails allows them to flex for improved horse safety and the steel rod reinforcements enhance strength. When the rails are pushed or impacted, they will cushion the horse and spring back to a perfectly straight line.

In the case of a stampeding and panicked horse, its energy is sufficient to cause the rails to bend, buckle, and release from the posts with no breakage or splinters. This prevents serious injury to the horse, unlike with welded steel fence rails or masonry style systems.

STANDARD STYLES

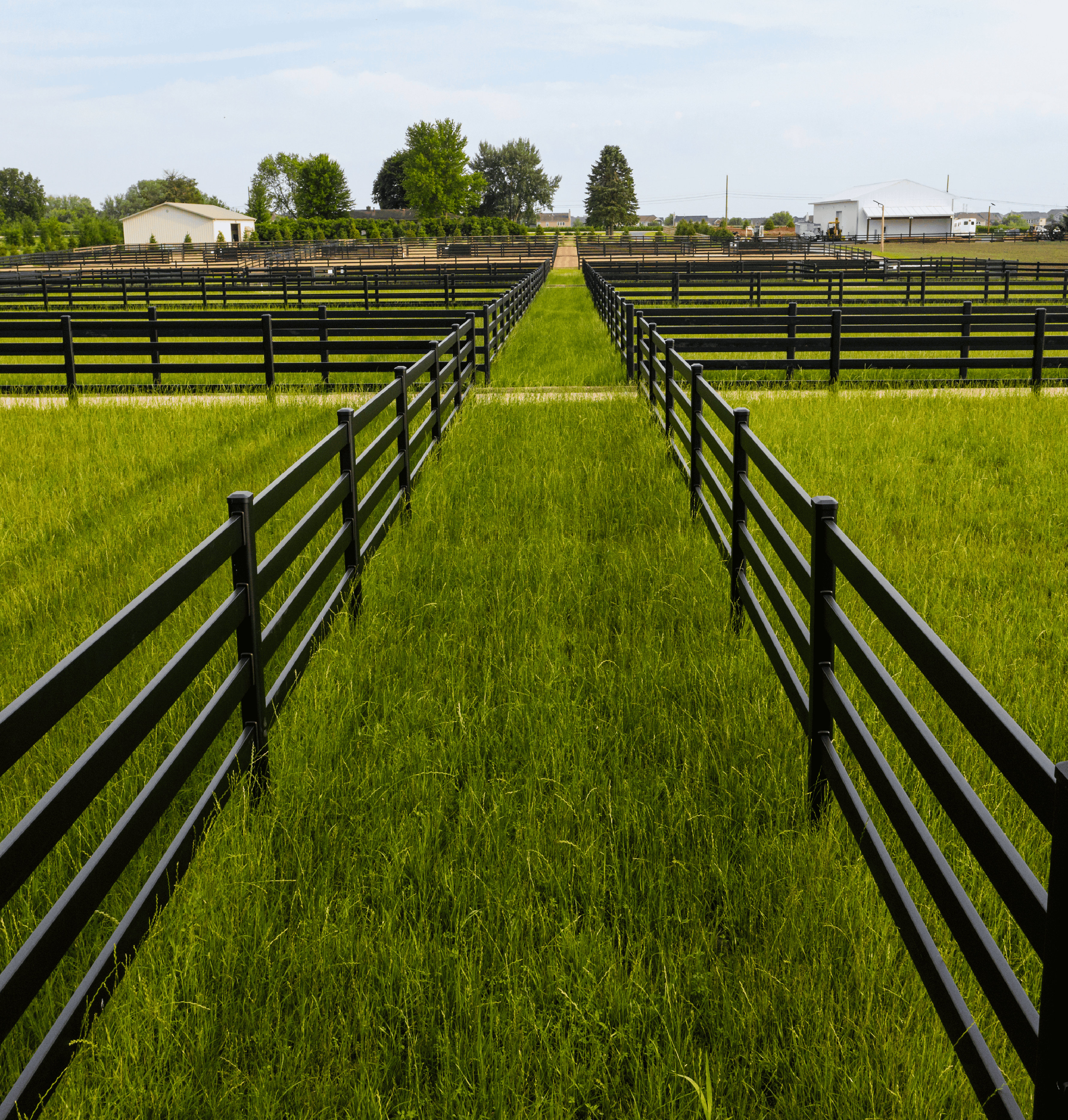

4-Rail Black Horse Fence

3-Rail Black Horse Fence

4-Rail White Horse Fence

3-Rail White Horse Fence

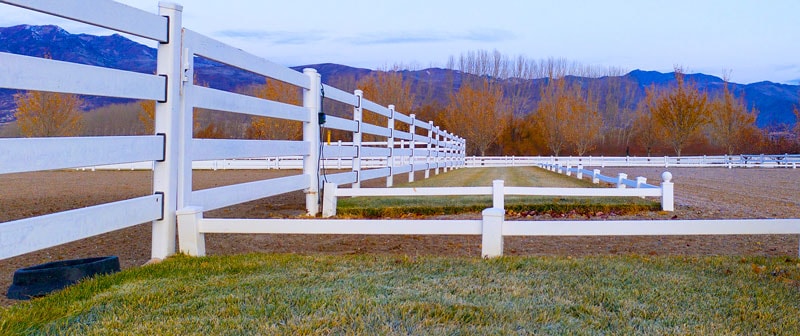

Choosing a Fence Color

For a detailed look at the differences between our colors, please watch the video below.

Steel Board Fence Specifications

Post Length and Dimensions
100" (8 feet 4 inches), 3-1/2" x 5-1/8"
Post Height Installed
57" (4 feet 9 inches)
Post Strength
1200 lbs. horizontal (at top rail)
Rail Length and Dimensions
114" (9-1/2 feet), 1-3/8" x 5-1/8"
Rail Strength
400 lbs. horizontal, 700 lbs. reinforced, 1200 lbs. vertical
Top Rail Height Installed
54" (4-1/2 feet) [5-Rail is 72"]
Post Centers
115 3/4" (9 feet 7-3/4 inches)

Metal Fence Installation

Watch a complete installation overview in the below video to learn how to install the steel fence rails. For more visual and written horse rail fence installation instructions, dimensions and layouts, visit our Installation PageClick here for our 3 Rail layout and click here for 4 rail.

GET A QUOTE

Send a copy of your layout to us at sales@buckleyfence.com or call us at 877-306-4024 and we will provide a quote!
